Racking System
Engineered for maximum stability and long-term performance, STM fixed pile-driven racking system delivers
exceptional wind resistance and structural strength in the most demanding environments.

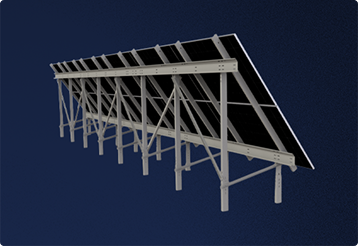

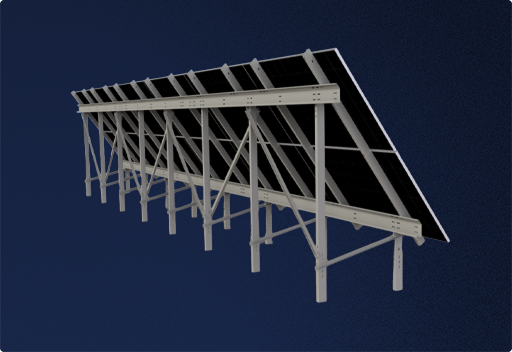

Fixed Pile-Driven Racking System
12 Panels (6 x 2 Layout) Per Set
Deep-Driven Stability, Long-Term Reliability
Racking System
Engineered for maximum stability and long-term performance, STM fixed pile-driven racking system delivers exceptional wind resistance and structural strength in the most demanding environments.
Fixed Pile-Driven Racking System
12 Panels (6 x 2 Layout) Per Set
Deep-Driven Stability, Long-Term Reliability
More Details
Check out Fixed Pile-Driven Racking System’s structural specifications.
Dimensions
Tilt Angle
Ground Clearance
Design Wind Load
Material
Total Structural Mass
Foundation System
Fasteners
- 1.7 x 14.4 x 2.9 m (W x L x H)
- 55°
- 0.7 m
- < 98 mph (< 43.8 m/s)
- Hot-Dip Galvanized Steel S355
- 850 kg
- C Piles
- 3 m Depth
- 850 kg
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
More Details
Check out STM BESS’ core specifications.
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
Frequently Asked Questions
Have questions about our ground-mounted racking system? Some of these might help you.
What is a ground-mounted racking system and what foundation options are available?
A ground-mounted racking system supports solar panels installed on open land. It allows optimal panel tilt and orientation for maximum energy production. Foundation options include pile-driven foundations for strong ground anchoring and ballasted foundations that require no ground penetration. The choice depends on soil conditions, site constraints, and project requirements.

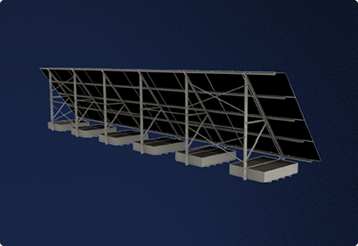

What makes racking system with ballast boxes different, and how does it remain stable without ground anchoring?
Unlike conventional ground-mounted systems that require piles or concrete foundations, this solution uses a fully ballasted design, eliminating ground penetration. This reduces civil works, accelerates installation, and simplifies permitting on sensitive sites.
Structural stability is ensured through precisely engineered ballast weight combined with a robust steel frame and cross-bracing system. The design is optimized to withstand wind and snow loads while maintaining long-term reliability and performance.
What are the key benefits of ground-mounted systems?
Ground-mounted racking systems offer:
- Flexible foundation options for different site conditions;
- Optimized panel orientation for maximum energy yield;
- Scalability for commercial and utility-scale projects;
- Easier access for maintenance;
- Efficient installation and long-term reliability.
These advantages make them a practical and efficient solution for a wide range of solar developments.
What materials are typically used?
Our system is commonly manufactured from high-strength, corrosion-resistant materials such as hot-dip galvanized steel, ensuring long-term durability and corrosion resistance in a wide range of climates. It is engineered to perform reliably under varying wind, snow, and weather conditions across different site environments.
What are the main benefits for developers and EPCs?
The system reduces installation time, minimizes site disruption, and lowers overall balance-of-system costs. It also enables faster project timelines from permitting to commissioning.
