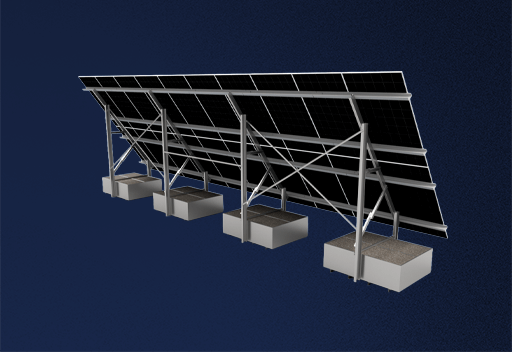

Fixed Ground-Mounted Racking System With Ballast Box 2 × 10
STM fixed racking system with integrated ballast boxes, designed for secure installation without ground disruption. Ideal for challenging terrains and sensitive sites where stability, flexibility, and durability are essential.
Fixed Ground-Mounted Racking System With Ballast Box 2 × 10
Fixed Ballast Box Racking System
2 × 10 Layout
- High Wind Resistance
- Corrosion-Protected HDG Steel
- Engineered for Heavy Bifacial Modules
- Stable Ballast Box Foundation System
- Suitable for Demanding Climates
Fixed Ground-Mounted Racking System With Ballast Box 2 × 10
STM fixed racking system with integrated ballast boxes, designed for secure installation without ground disruption. Ideal for challenging terrains and sensitive sites where stability, flexibility, and durability are essential.
Fixed Ground-Mounted Racking System With Ballast Box 2 × 10
Fixed Ballast Box Racking System
2 × 10 Layout
- High Wind Resistance
- Corrosion-Protected HDG Steel
- Engineered for Heavy Bifacial Modules
- Stable Ballast Box Foundation System
- Suitable for Demanding Climates
More Details

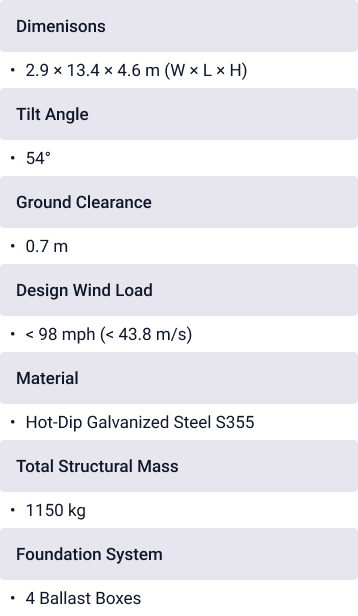

Check out our 2 × 10 Fixed Ballast Box Racking System’s structural specifications.
Dimensions
Tilt Angle
Ground Clearance
Design Wind Load
Material
Total Structural Mass
Foundation System
- 2.9 × 13.4 × 4.6 m (W × L × H)
- 54°
- 0.7 m
- < 98 mph (< 43.8 m/s)
- Hot-Dip Galvanized Steel S355
- 1,150 kg
- 4 Ballast Boxes
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
More Details
Check out our 2 × 10 Fixed Ballast Box Racking System’s structural specifications.
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
Frequently Asked Questions
Have questions about our ground-mounted tracking system? Some of these might help you.
What makes this racking system different from typical ground mounts?
Unlike conventional ground-mounted systems, this solution uses a fully ballasted foundation, eliminating the need for concrete or ground penetration. This significantly reduces civil works, speeds up installation, and simplifies permitting on sensitive sites.
How does the system remain stable without anchoring?
Structural stability is achieved through engineered ballast weight combined with steel framing and cross-bracing. The design is optimized to resist wind and snow loads while maintaining long-term reliability.
Is this system suitable for utility-scale projects?
Yes. The modular design makes it ideal for large-scale installations, allowing fast deployment, easy expansion, and efficient site layout optimization.
Can the system adapt to different site conditions and climates?
Yes. The system is built from hot-dip galvanized steel, ensuring long-term durability and corrosion resistance in a wide range of climates. It is engineered to perform reliably under varying wind, snow, and weather conditions across different site environments.
What are the main benefits for developers and EPCs?
The system reduces installation time, minimizes site disruption, and lowers overall balance-of-system costs. It also enables faster project timelines from permitting to commissioning.
