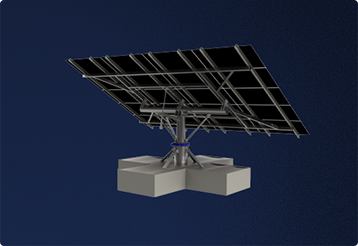

STM Dual-Axis Ballast Box Tracker
STM dual-axis solar tracker with a ballast box foundation delivers maximum energy output
by following the sun in real time-capturing more power from sunrise to sunset.

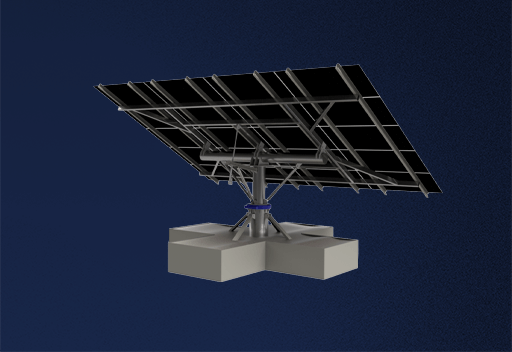

STM Dual-Axis Ballast Box Tracker
Ideal solution for landfills, brownfields, and sites where traditional foundations aren’t an option.
5 × 4 Layout
- High Wind Resistance
- Corrosion-Protected HDG Steel
- Engineered for Heavy Bifacial Modules
- Stable Ballast Box Foundation System
- Suitable for Demanding Climates
Dual Axis Ballast Box Racking System
STM dual-axis solar tracker with a ballast box foundation delivers maximum energy output by following the sun in real time-capturing more power from sunrise to sunset.
Dual Axis Ballast Box Racking System
Ideal solution for landfills, brownfields, and sites where traditional foundations aren’t an option.
5 × 4 Layout
- High Wind Resistance
- Corrosion-Protected HDG Steel
- Engineered for Heavy Bifacial Modules
- Stable Ballast Box Foundation System
- Suitable for Demanding Climates
More Details
Check out our 5 × 4 Dual Axis Ballast Box Racking System’s structural specifications.
Dimensions
Tilt Angle
Azimuth Angle
Ground Clearance
Design Wind Load
Material
Total Structural Mass w/o Solar Panels
Foundation System
- 11.7 × 11.7 × 7 m (W × L × H)
- From 0° to 60°
- +/- 120°
- 1m
- < 98 mph (< 43.8 m/s)
- Hot-Dip Galvanized Steel S355
- 3,600 kg
- 5 Ballast Boxes
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
More Details
Check out our 5 × 4 Dual Axis Ballast Box Racking System’s structural specifications.
Product Inquiry
Request more information about this product and find out the best way it can fit your needs.
Frequently Asked Questions
Have questions about our ground-mounted racking system? Some of these might help you.
What is a dual-axis solar tracker with ballast foundation?
A dual-axis solar tracker follows the sun in both tilt and rotation to maximize energy production. With a ballast box foundation, the system is stabilized using weight instead of pile driving, creating a non-penetrating solar mounting solution.
Why choose a ballast foundation for solar projects?
A ballast foundation eliminates ground penetration, making it ideal for landfills, brownfields, rocky soil, and sites with underground utilities. It enables faster installation and minimal site disturbance.
How much more energy does a dual-axis tracker produce?
Dual-axis solar trackers can generate 25–40% more energy than fixed-tilt systems by continuously aligning panels with the sun throughout the day and year.
Is a ballast-mounted tracker stable in high winds?
Yes. The system is engineered for site-specific wind loads and includes calculated ballast weight and automatic wind stow positioning for structural stability.
Where is this system typically used?
It is commonly used for landfills, capped sites, brownfields, restricted-ground projects, and temporary solar installations requiring ground-mounted solar without piles.
