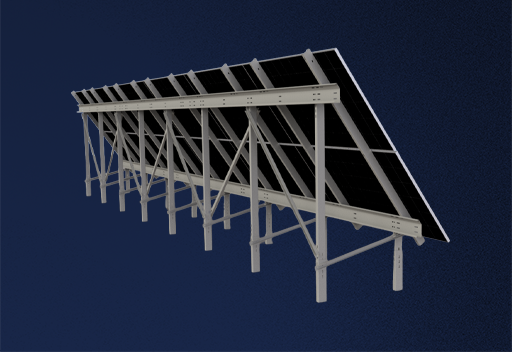

Fixed Pile-Driven Racking System

Engineered for maximum stability and long-term performance, STM fixed pile-driven racking system delivers exceptional wind resistance and structural strength in the most demanding environments.

Fixed Pile-Driven Racking System

12 Panels (6 × 2 Layout) Per Set

Deep-Driven Stability, Long-Term Reliability

High Wind Resistance
Corrosion-Protected HDG Steel
Supports High-Performance 760 W Bifacial Modules
Stable Deep-Pile Foundation System
Suitable for Demanding Climates

View Datasheet

More Details

Check out Fixed Pile-Driven Racking System’s structural specifications.

Dimensions

Tilt Angle

Ground Clearance

Design Wind Load

Material

Total Structural Mass

Foundation System

Fasteners

1.7 × 14.4 × 2.9 m (W × L × H)

55°

0.7 m

< 98 mph (< 43.8 m/s)

Hot-Dip Galvanized Steel S355

850 kg

C Piles
3 m Depth

Electrophoretic Lacquer Coated

Product Inquiry

Request more information about this product and find out the best way it can fit your needs.

Inquire About Product

Frequently Asked Questions

Have questions about our ground-mounted racking system? Some of these might help you.

What is a fixed pile-driven racking system?

A fixed pile-driven racking system is a ground-mounted solar structure where steel piles are driven directly into the soil to create a secure foundation. The system holds solar panels at a fixed tilt angle optimized for maximum energy production.

Why choose a pile-driven foundation?

Pile-driven foundations provide strong structural anchoring without the need for concrete. They allow fast installation, reduced material usage, and reliable performance across a wide range of soil conditions.

What soil conditions are suitable for pile-driven systems?

Pile-driven systems are suitable for most soil types, including compacted soil and clay. A geotechnical assessment is typically conducted to determine pile depth and ensure structural stability based on site-specific conditions.

How does the system perform in extreme weather?

The structure is engineered to meet local wind, snow, and seismic load requirements. Driven piles provide high load-bearing capacity, ensuring long-term durability and stability even in demanding environmental conditions.

What are the main advantages of a fixed pile-driven system?

Strong and secure ground anchoring
Faster installation compared to concrete foundations
Cost-effective for commercial and utility-scale projects
Low maintenance and long service life
Scalable and adaptable to large installations
